网络编程入门

发表于 更新于 分类于
本文字数： 7k 阅读时长 ≈ 13 分钟

1. TCP/UDP网络通信流程图

1.1 TCP

image-20230926192207003

1.1.1 代码

server.c
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
#include <arpa/inet.h>
#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <bits/sockaddr.h>
#include <netinet/in.h>
#include <string.h>
#include <unistd.h>
#include <signal.h>

#define SERVER_PORT 8888
#define BACKLOG 16
#define RECV_BUF_SIZE 1024

int main(int argc, char *argv[])
{
    int iSocketServer;
    int iSocketClient;
    int iRet, iRecvLen, iClientCnt = 0;
    struct sockaddr_in tSockServerAddr, tSockClientAddr;
    socklen_t clientAddrlen;
    unsigned char ucRecvBuf[RECV_BUF_SIZE];

    socklen_t server_addrlen;

	/* 对SIGCHLD信号的操作为忽略 */
    signal(SIGCHLD,SIG_IGN);

    // IPV4协议族，类型是可靠传输中的0号协议：TCP
    iSocketServer = socket(AF_INET, SOCK_STREAM, 0);
    if(-1 == iSocketServer)
    {
        printf("socket error\n");
        return -1;
    }

    tSockServerAddr.sin_family = AF_INET;
    tSockServerAddr.sin_port = htons(SERVER_PORT);  // 转化主机字节序为网络字节序
    tSockServerAddr.sin_addr.s_addr = INADDR_ANY;   // 监测本机上所有IP
    memset(tSockServerAddr.sin_zero, 0, 8);
    // Socket文件，监听的IP和端口，结构体的Size
    iRet = bind(iSocketServer, (struct sockaddr *)&tSockServerAddr, sizeof(struct sockaddr));
    if(-1 == iRet)
    {
        printf("bind() failed\n");
        return -1;
    }
    // Socket文件，最多允许多少路连接
    iRet = listen(iSocketServer, BACKLOG);
    if(-1 == iRet)
    {
        printf("listen() failed\n");
        return - 1;
    }

    printf("start listen...\n");
    while(1)
    {
        // 服务端Socket文件，客户端地址结构体，结构体长度，成功则返回客户端的Socket文件
        clientAddrlen = sizeof(struct sockaddr);
        iSocketClient = accept(iSocketServer, (struct sockaddr *)&tSockClientAddr, &clientAddrlen);
        if(-1 != iSocketClient)
        {
            printf("accept success from client %d: %s\n", ++iClientCnt, inet_ntoa(tSockClientAddr.sin_addr));
            if(!fork())  //fork()对于子进程返回0，对于父进程返回子进程的PID
            {
                /* 子进程 */
                while (1)
                {
                    /* 接收客户端发送的数据并显示处理 */
                    iRecvLen = recv(iSocketClient, &ucRecvBuf, RECV_BUF_SIZE - 1, 0);
                    if(iRecvLen == -1 || iRecvLen == 0)  //发生错误或者流关闭
                    {
                        close(iSocketClient);
                        return -1;
                    }
                    else
                    {
                        ucRecvBuf[iRecvLen] = '\0';
                        printf("recv string from %d: length %d and string %s\n", iClientCnt, iRecvLen, ucRecvBuf);
                    }
                }
            }
        }
    }
    close(iSocketServer);
    return 0;
}
client.c
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
#include <arpa/inet.h>
#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <bits/sockaddr.h>
#include <netinet/in.h>
#include <string.h>
#include <unistd.h>

#define SERVER_PORT 8888
#define SEND_BUF_SIZE 1024
int main(int argc, char *argv[])
{
    int iSocketClient;
    struct sockaddr_in tSockServerAddr;
    int iRet, iSendLength;
    unsigned char ucSendBuf[SEND_BUF_SIZE];

    if (argc != 2)
	{
		printf("Usage:\n");
		printf("%s <server_ip>\n", argv[0]);
		return -1;
	}

    /* 打开一个Socket文件 */
    iSocketClient = socket(AF_INET, SOCK_STREAM, 0);
    if(-1 == iSocketClient)
    {
        printf("socket error\n");
        return -1;
    }
    /* 连接到服务器 */
    tSockServerAddr.sin_family = AF_INET;
    tSockServerAddr.sin_port = htons(SERVER_PORT);  // 转化主机字节序为网络字节序
    if( !inet_aton(argv[1], &tSockServerAddr.sin_addr) )
    {
        printf("IP: %s is invalid!\n", argv[1]);
        return -1;
    }
    memset(tSockServerAddr.sin_zero, 0, 8);
    iRet = connect(iSocketClient, (const struct sockaddr *)&tSockServerAddr, sizeof(struct sockaddr));
    if(-1 == iRet)
    {
        printf("Error connecting\n");
        return -1;
    }
    /* 发送数据 */
    while (1)
    {
        fgets(ucSendBuf, SEND_BUF_SIZE - 1, stdin);
        iSendLength = send(iSocketClient, ucSendBuf, strlen(ucSendBuf), 0);
        if(-1 == iSendLength)
        {
            printf("Error sending\n");
            close(iSocketClient);
            return -1;
        }
    }
    /* 关闭Socket文件 */
    close(iSocketClient);
    return 0;
}

1.1.2 僵尸进程

如果server.c没有加入代码 signal(SIGCHLD,SIG_IGN);，在先结束已经建立连接的客户端进程时，与之对应的服务端子进程就会产生如下图所示的情况，变成一个僵尸进程：

image-20230926223605756

(1) 僵尸进程产生的原因

当一个子进程终止时，它的进程表项仍然保留在系统中，直到父进程通过 wait 或者 waitpid 等系统调用来获取子进程的终止状态。如果父进程没有正确处理子进程终止的消息，那么子进程的进程表项就会一直保留下来，成为僵尸进程。僵尸进程会占用有限的系统资源，并且如果产生大量的僵尸进程，可能会导致系统资源耗尽。

而 SIGCHLD 信号是在子进程终止或者停止时发送给父进程的。默认情况下，父进程会忽略该信号，并不会自动处理僵尸进程。

(2) 解决僵尸进程的一种方式

当在父进程中调用 signal(SIGCHLD, SIG_IGN) 时，意味着设置了 SIGCHLD 信号的处理方式为忽略。这样，父进程在子进程终止时不会收到 SIGCHLD 信号，也不会产生僵尸进程。系统的init进程会立即回收子进程的资源，并且不需要父进程调用 wait 或者 waitpid 来处理子进程的终止状态。

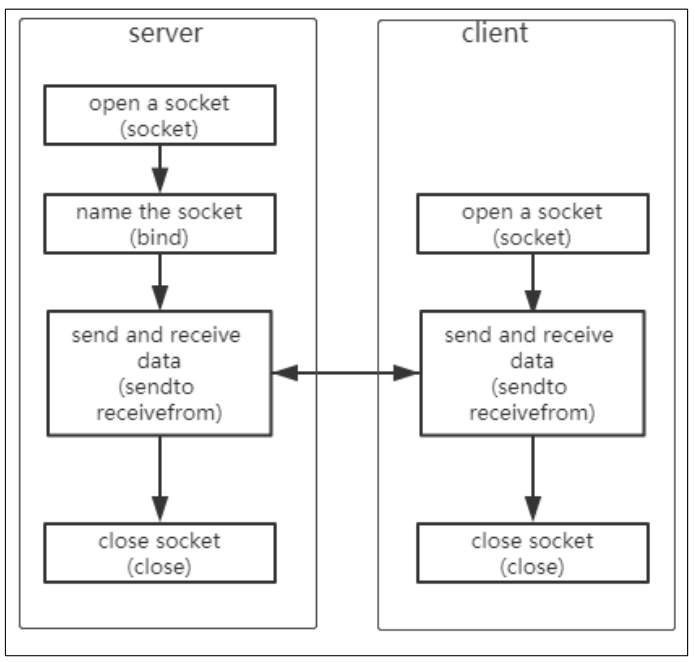

1.2 UDP

image-20230926192248900

1.2.1 代码

server.c
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#include <arpa/inet.h>
#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <bits/sockaddr.h>
#include <netinet/in.h>
#include <string.h>
#include <unistd.h>
#include <signal.h>

#define SERVER_PORT 8888
#define RECV_BUF_SIZE 1024
int main(int argc, char **argv)
{
    int iSocketServer, iRet, iRecvLen;
    struct sockaddr_in tSocketServerAddr, tSocketClientAddr;
    unsigned char ucRecvBuf[RECV_BUF_SIZE];
    socklen_t clientAddrLen;

    iSocketServer = socket(AF_INET, SOCK_DGRAM, 0);
    if(-1 == iSocketServer)
    {
        printf("socket error\n");
        return -1;
    }

    tSocketServerAddr.sin_port = htons(SERVER_PORT);
    tSocketServerAddr.sin_family = AF_INET;
    tSocketServerAddr.sin_addr.s_addr = INADDR_ANY;
    memset(tSocketServerAddr.sin_zero, 0, sizeof(tSocketServerAddr.sin_zero));
    iRet = bind(iSocketServer, (const struct sockaddr *)&tSocketServerAddr, sizeof(struct sockaddr));
    if(-1 == iRet)
    {
        printf("bind error\n");
        return -1;
    }

    printf("start listen...\n");
    while (1)
    {
        clientAddrLen = sizeof(struct sockaddr);
        iRecvLen = recvfrom(iSocketServer, ucRecvBuf, RECV_BUF_SIZE - 1, 0, (struct sockaddr *)&tSocketClientAddr, &clientAddrLen);
        if(iRecvLen == -1)
        {
            printf("recv error\n");
            return -1;
        }
        ucRecvBuf[iRecvLen] = '\0';
        printf("recv string from %s: length %d and string %s\n", inet_ntoa(tSocketClientAddr.sin_addr), iRecvLen, ucRecvBuf);
    }
    close(iSocketServer);
    return 0;
}
client.c
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#include <arpa/inet.h>
#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <bits/sockaddr.h>
#include <netinet/in.h>
#include <string.h>
#include <unistd.h>
#include <signal.h>

#define CLIENT_SEND_SIZE 1024
#define SERVER_PORT 8888

int main(int argc, char *argv[])
{
    int iSocketClient, iSendLen;
    struct sockaddr_in tSocketServerAddr;
    unsigned char ucSendBuf[CLIENT_SEND_SIZE];

    if(argc != 2)
    {
        printf("Usage: %s <server_ip>\n", argv[0]);
        return -1;
    }
    iSocketClient = socket(AF_INET, SOCK_DGRAM, 0);
    if(-1 == iSocketClient)
    {
        printf("socket error\n");
        return -1;
    }
    if(!inet_aton(argv[1], &tSocketServerAddr.sin_addr))
    {
        printf("IP: %s is invalid!\n", argv[1]);
        return -1;
    }
    tSocketServerAddr.sin_port = htons(SERVER_PORT);
    tSocketServerAddr.sin_family = AF_INET;
    memset(tSocketServerAddr.sin_zero, 0, sizeof(tSocketServerAddr.sin_zero));

    while(1)
    {
        fgets(ucSendBuf, CLIENT_SEND_SIZE - 1, stdin);
        iSendLen = sendto(iSocketClient, ucSendBuf, strlen(ucSendBuf), 0, (const struct sockaddr *)&tSocketServerAddr, sizeof(struct sockaddr));
        if(-1 == iSendLen)
        {
            printf("Error sending\n");
            close(iSocketClient);
            return -1;
        }
    }
    close(iSocketClient);
    return 0;
}
